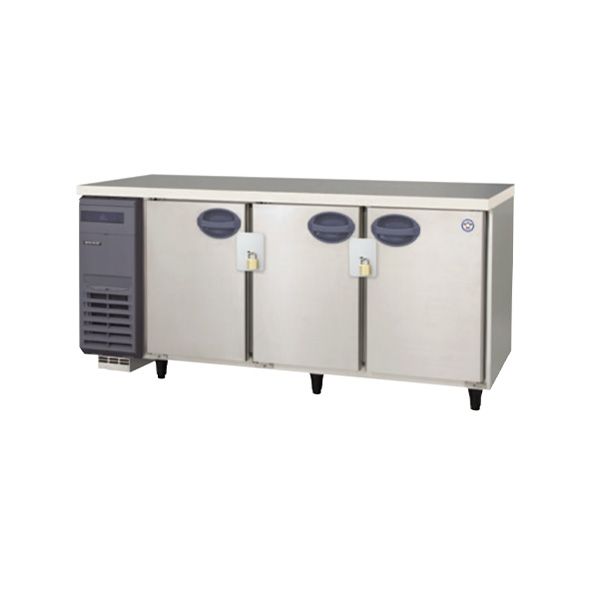

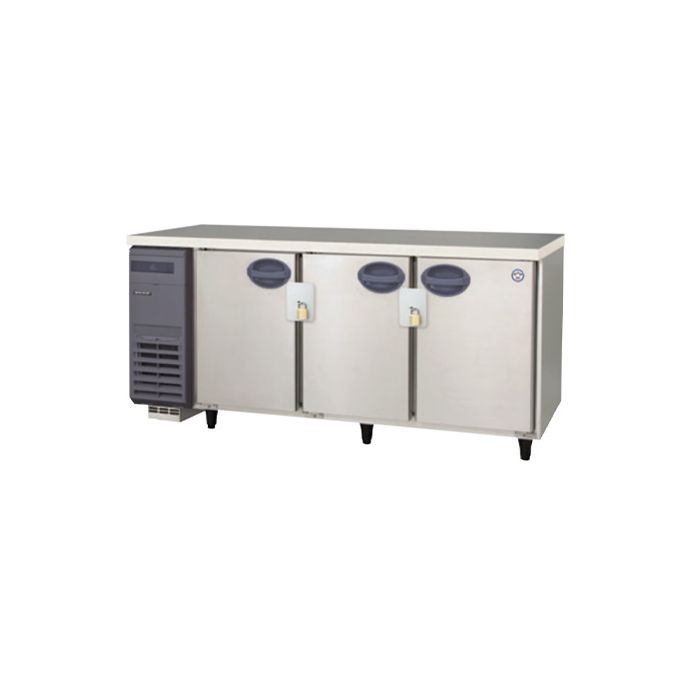

GALILEI 3 DOOR COUNTER CHILLER 1/1 GN PAN CAPACITY WITH DRAIN EVAPORATOR AYN-160RXP3A

Features
SKU
FG-AYN-160RXP3A
Email to a Friend

Galilei · Model: AYN-160RXP3A

Pricing available on request

🚚 Delivery Optional 🔧 Installation Optional 🛡️ Warranty: Two Years Manufacturing Defects 💬 WhatsApp support
Key Specifications
ModelAYN-160RXP3A
BrandGalilei
Size (LxWxH) mm1650 x 660 x 800
Weight (KG)105
VoltageSingle phase 220V
Capacity (ℓ)417
Warranty Two Years Manufacturing Defects
OriginThailand

Features

  • Non-fluorocarbon refrigerant adopted
  • Inverter control
Model AYN-160RXP3A
Capacity 417 litres
Voltage Single phase 220V
Frequency 50Hz
Cooling performance -5°C to 10°C
(No load and ambient temperature of 30°C)
Compressor 140W
Refrigerant R-1234yf
Temperature control Microcomputer control, digital display
Defrost control Microcomputer control, defrost heater
Applicable breaker capacity Single phase 220V 15A 50Hz
Power cord 2.0 m (Plug with earth wire)
Voltage range 220V ±6%
Cooling Operation current 1.5A
Power consumption 290W
Power factor 88%
Defrosting Operation current 1.5A
Power consumption 321W
Refrigerant control method Capillary tube
Condenser Microchannel type, forced air-cooling
Evaporator Fin and tube type, forced cold air circulation
Operating temperature range 5°C to 35°C
Radiation of heat capacity 565W
Adjustable leg Resin made leg from 95 to 130 mm
Accessories Shelves (6 pieces)
Pan brackets (6 sets)
Locking devices (2 sets)
Drain evaporater (1 set)
Other accessories Condenser filter
Interior material Stainless steel
Exterior material Stainless steel (Front and sides)
Stainless steel (Top)
Galvanized steel (Rear and bottom)
Door material Stainless steel (Front)
Stainless steel (Rear)
Insulation material Polyurethane foam
Adjustable shelf material Steel wire resin coating
Outside dimension (L x W x H) 1650 x 660 x 800 mm
Inside dimension (L x W x H) 1286 x 513 x 595 mm
Weight 105 kg
