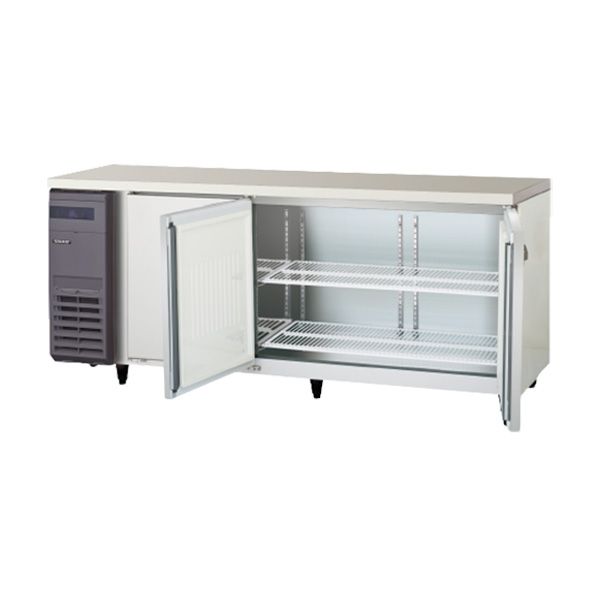

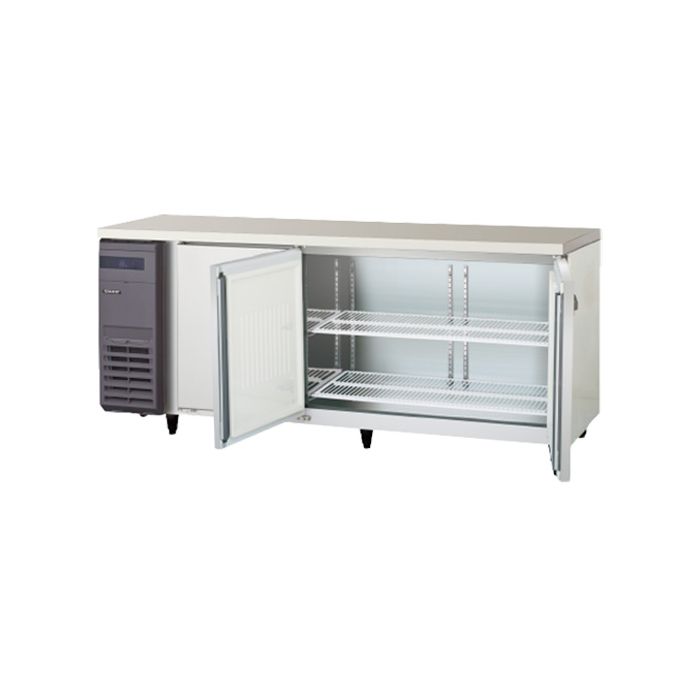

GALILEI 3 DOOR COUNTER CHILLER (CENTER PILLARLESS) 1800 X 750 X 800 MM AYW-180RXFA

calcActive())">
GALILEI 3 DOOR COUNTER CHILLER (CENTER PILLARLESS) 1800 X 750 X 800 MM AYW-180RXFA
Model
AYW-180RXFA
Capacity
540 litres
Voltage
Single phase 220V
Frequency
50Hz
Cooling performance
-5°C to 10°C
(No load and ambient temperature of 30°C)
Compressor
140W
Refrigerant
R1234yf
Temperature control
Microcomputer control, digital display
Defrost control
Microcomputer control, defrost heater
Applicable breaker capacity
Single phase 220V 15A 50Hz
Power cord
2.0 m (Plug with earth wire)
Voltage range
220V ±6%
Cooling
Operation current
1.2A
Power consumption
210W
Power factor
80%
Defrosting
Operation current
1.2A
Power consumption
257W
Refrigerant control method
Capillary tube
Condenser
Microchannel type, forced air-cooling
Evaporator
Fin and tube type, forced cold air circulation
Operating temperature range
5°C to 35°C
Radiation of heat capacity
565W
Adjustable leg
Resin made leg from 95 to 130 mm
Accessories
Shelves (4 pieces)
Drain accessory (1 set)
Other accessories
Condenser filter
Interior material
Stainless steel
Exterior material
Stainless steel (Front and sides)
Stainless steel (Top)
Galvanized steel (Rear and bottom)
Door material
Stainless steel (Front)
Insulation material
Polyurethane foam
Adjustable shelf material
Steel wire resin coating
Outside dimension (L x W x H)
1800 x 750 x 800 mm
Inside dimension (L x W x H)
1436 x 603 x 595 mm
Weight
110 kg
- SKU
- SSM-AYW-180RXFA
RM 10,180.00
Galilei · Model: AYW-180RXFA
The Galilei AYW-180RXFA is a 3 door counter chiller (center pillarless) 1800 X 750 X 800 MM for restaurants, cafés, hotels and food businesses. Request a quotation for pricing, delivery and installation, or see it at one of our six showrooms across Malaysia.
Price subject to confirmation in your quotation. Delivery and installation quoted separately.
- Delivery & installation Nationwide, by our technicians
- Brand warranty Two Years Manufacturing Defects
- See it in person 6 showrooms in Malaysia
- Kitchen planning With Business Doctor
Key Specifications
ModelAYW-180RXFA
BrandGalilei
Size (LxWxH) mm1800 x 750 x 800
Weight (KG)110
VoltageSingle phase 220V
Capacity (ℓ)540
Warranty Two Years Manufacturing Defects
OriginThailand
| Model | AYW-180RXFA | |
| Capacity | 540 litres | |
| Voltage | Single phase 220V | |
| Frequency | 50Hz | |
| Cooling performance | -5°C to 10°C | |
| (No load and ambient temperature of 30°C) | ||
| Compressor | 140W | |
| Refrigerant | R1234yf | |
| Temperature control | Microcomputer control, digital display | |
| Defrost control | Microcomputer control, defrost heater | |
| Applicable breaker capacity | Single phase 220V 15A 50Hz | |
| Power cord | 2.0 m (Plug with earth wire) | |
| Voltage range | 220V ±6% | |
| Cooling | Operation current | 1.2A |
| Power consumption | 210W | |
| Power factor | 80% | |
| Defrosting | Operation current | 1.2A |
| Power consumption | 257W | |
| Refrigerant control method | Capillary tube | |
| Condenser | Microchannel type, forced air-cooling | |
| Evaporator | Fin and tube type, forced cold air circulation | |
| Operating temperature range | 5°C to 35°C | |
| Radiation of heat capacity | 565W | |
| Adjustable leg | Resin made leg from 95 to 130 mm | |
| Accessories | Shelves (4 pieces) | |
| Drain accessory (1 set) | ||
| Other accessories | Condenser filter | |
| Interior material | Stainless steel | |
| Exterior material | Stainless steel (Front and sides) | |
| Stainless steel (Top) | ||
| Galvanized steel (Rear and bottom) | ||
| Door material | Stainless steel (Front) | |
| Insulation material | Polyurethane foam | |
| Adjustable shelf material | Steel wire resin coating | |
| Outside dimension (L x W x H) | 1800 x 750 x 800 mm | |
| Inside dimension (L x W x H) | 1436 x 603 x 595 mm | |
| Weight | 110 kg | |
