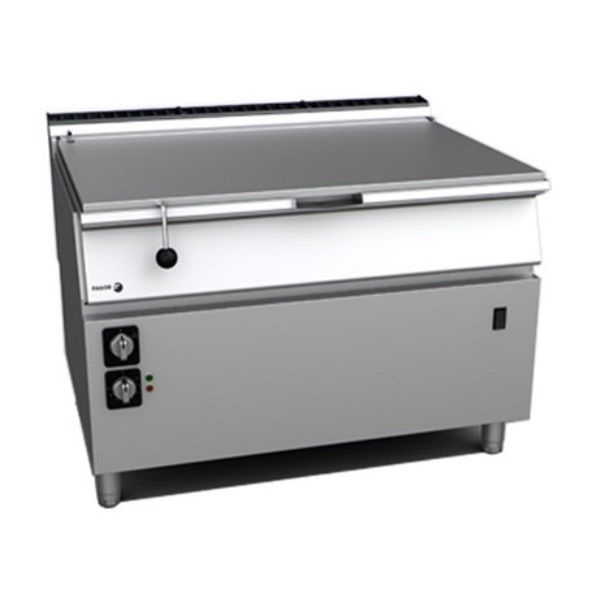

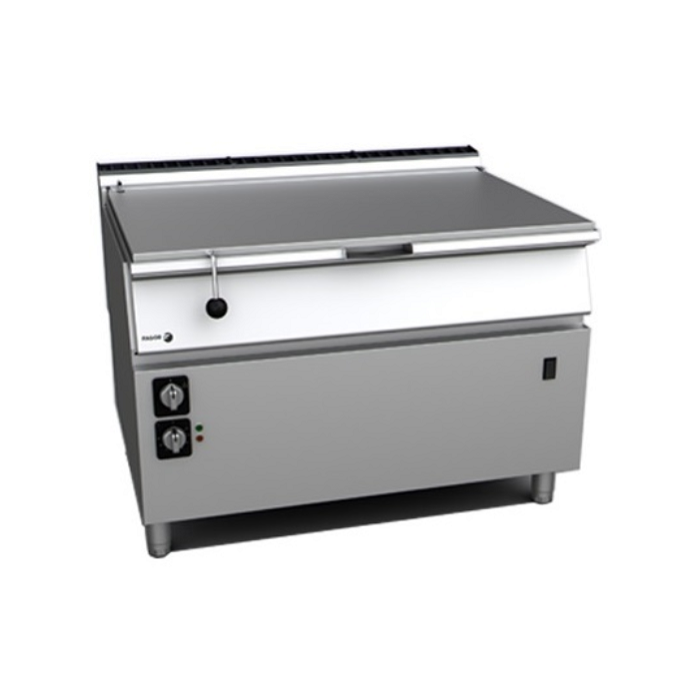

FAGOR Electric Tilting Bratt Pans SB-E915-IM

MODEL

SB-E915-IM

Additional Information

More Information
Model	SB-E915-IM
Brand	Fagor
Energy Type	Electric
Size (LxWxH) mm	1200 x 930 x 850
Weight (KG)	233
Voltage	380-415V 50/60Hz
Capacity (ℓ)	120
Warranty	One Year Manufacturing Defect
Origin	Spain

Model	SB-E915-IM
Raising system	Motorized
Tank type	Stainless steel
Capacity	120 litre
Surface	1130 x 616 mm
Total power	22.5 kW
Voltage	380-415V 50/60Hz
Water pressure	200-400kPa (2-4 bar)
Water protection	IPX5
Temperature range	50 to 310 °C
Bottom of the wells	8 mm for iron pans and 10 mm for stainless steel pans
Dimension (L x W x H)	1200 x 930 x 850 mm
Packaging dimension (L x W x H)	1022 x 1240 x 1140 mm
Net weight	233 kg
Gross weight	270 kg

Features

Laser-cut joints, automatic welding and polishes.
Motorised or crank operated elevation systems to raise the pan until it is vertical and empty it completely.
Pan design with a rounded corners and no edges.
Flange around the perimeter to stop any condensed water from spilling over.
Pans filled with water by means of electric valve operated with switch on the front of the machine.
Double walled lid with drainer at the back.
Lid balance system by springs.
Micro breaking switch halts heating when the pan is raised.
High temperature enamelled cast iron flue protector.
Front access lid handle.
Electrically heated models use shielded stainless steel heating elements located under the bottom of the pan.
