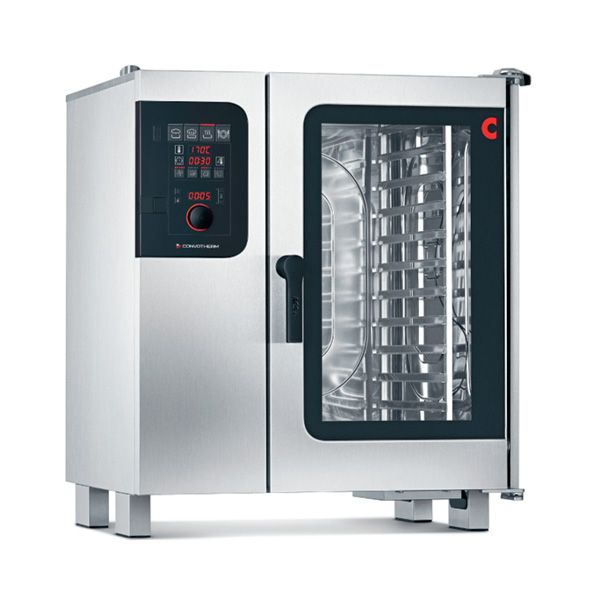

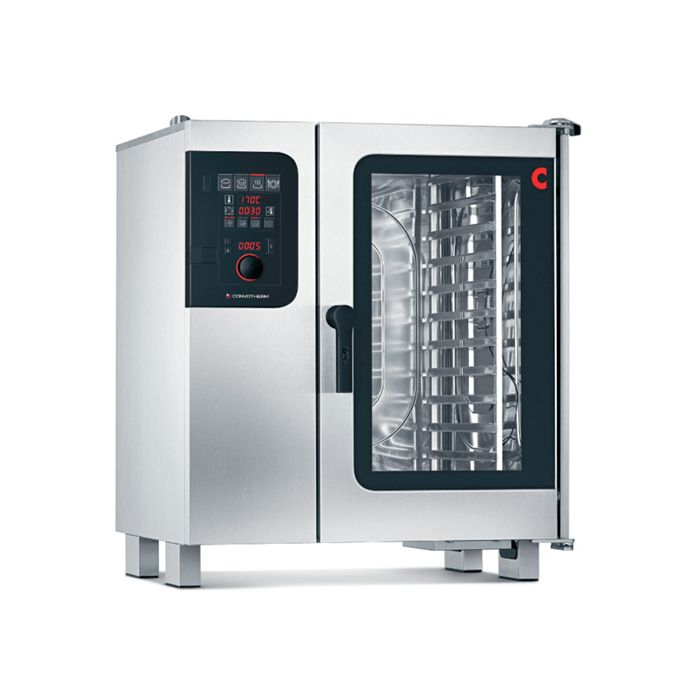

CONVOTHERM Maxx Pro Electric Spritzer Combi Oven 10.10 Easy Dial (Disappearing door) C4ED10.10 ESDD

calcActive())">
CONVOTHERM Maxx Pro Electric Spritzer Combi Oven 10.10 Easy Dial (Disappearing door) C4ED10.10 ESDD
easyDial user interface
- SKU
- CFN-C4ED10.10 ESDD
RM 59,810.00
RM 56,450.00
Save to project
CONVOTHERM Maxx Pro Electric Spritzer Combi Oven 10.10 Easy Dial (Disappearing door) C4ED10.10 ESDD
In Stock
Convotherm · Model: C4ED10.10 ESDD
Pricing available on request
🚚 Delivery Optional
🔧 Installation Optional
🛡️ 1 to 3 years warranty (depending on brand)
💬 WhatsApp support
Key Specifications
ModelC4ED10.10 ESDD
BrandConvotherm
Size (LxWxH) mm965 x 792 x 1058
Weight (KG)124
Voltage3N~ 400V 50/60Hz*
Warranty One Year Manufacturing Defect
OriginGermany
easyDial user interface
- Central control unit, convotherm-dial (C-Dial)
- Digital display
Features
- Steam generated by injecting water into the oven cavity
- Natural smart climateTM (ACS+) cooking methods: steam, combisteam, convection
- Cooking methods:
- Steam (30-130°C) with guaranteed steam saturation
- Combi-steam (30-250°C) with automatic moisture control
- Convection (30-250°C) with optimized heat transfer
- Natural Smart ClimateTM (ACS+) with extra functions:
- Crisp&Tasty – 5 moisture-removal settings
- BakePro – 5 levels of traditional baking
- HumidityPro – 5 humidity settings
- Controllable fan – 5 speed settings
- HygieniCare: hygienic handles
- Disappearing door with triple glazing: more space and greater safety at work (available optionally at an additional charge)
- Airflow management, BakePro, multi-point core temperature probe
- USB port integrated in the control panel
- HACCP data storage
- LED lighting in the oven cavity
| Model | C4ED10.10 ESDD | |
| Max. number of food containers | GN 1/1 10+1 | |
| Electrical supply | Voltage | 3N~ 400V 50/60Hz* |
| Rated power consumption | 19.5 kW | |
| Rated current | 28.1A | |
| Fuse rating | 32 A | |
| Water connection | Water supply | 2 x G 3/4'' fixed connection, optionally including connecting pipe (min. DN13 / 1/2'') |
| Flow pressure | 150 - 600 kPa (1.5 - 6 bar) | |
| Max. water flow rate | 15 litres/min | |
| Product dimension (L x W x H) | 965 x 792 x 1058 mm | |
| Packing dimension (L x W x H) | 1100 x 1300 x 940 mm | |
| Net weight | 124 kg | |
| Gross weight | 152 kg | |
