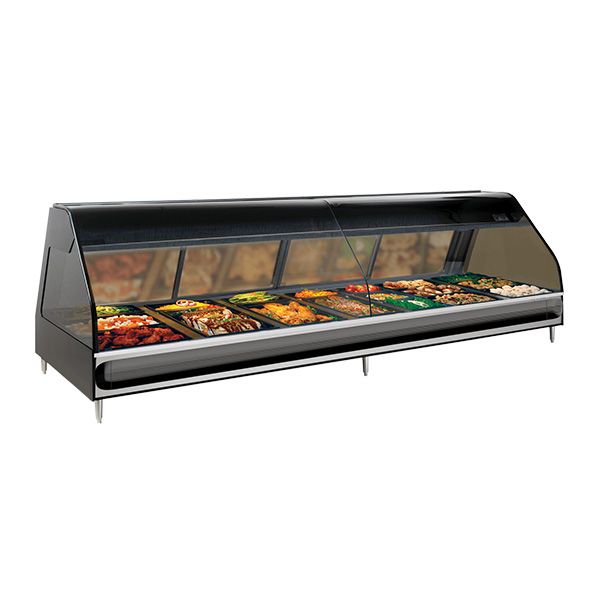

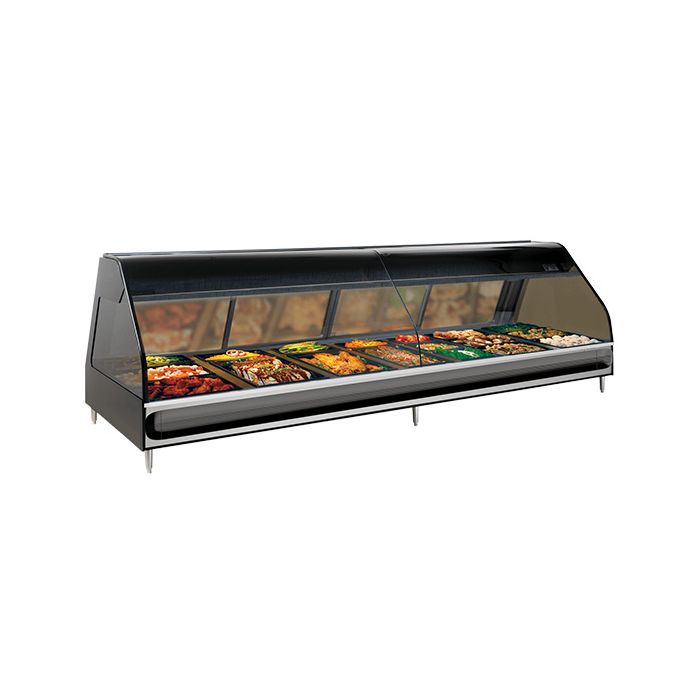

ALTO-SHAAM HEATED DISPLAY CASE 51KG (2438 x 1113 x 767 MM) ED3-96
MODEL
ED3-96
Additional Information
| Model | ED3-96 |
|---|---|
| Brand | ALTO-SHAAM |
| Size (LxWxH) mm | 2438 x 1113 x 767 |
| Weight (KG) | 239 |
| Warranty | One Year Manufacturing Defect |
| Origin | United States |
| Model | ED3-96 | |
| Capacity **will also accept 100 mm deep pans |
Maximum 51 kg | |
| Maximum 84 liters | ||
| 7 GN 1/1 (305 x 508 x 64 mm) | ||
| 7 GN 1/3 (305 x 152 x 64 mm) | ||
| 14 GN 1/2 (305 x 254 x 64 mm) | ||
| 4 full-size sheet pans (457 x 660 x 25.4 mm) | ||
| Voltage | 208V, 50/60 Hz, 1PH | |
| 240V, 50/60 Hz, 1PH | ||
| 230V, 50/60 Hz, 1PH | ||
| Back clearance | 270 mm | |
| Heat of rejection | Heat Gain qs | 456Â BTU/hr |
| Heat Gain qs | 0.13 kW | |
| Well dimension (L x W x D) | 2370 x 692 x 114 mm | |
| Exterior dimension (L x W x H) | 2438 x 1113 x 767 mm | |
| Packing dimension (L x W x H) | 2540 x 1397 x 1143 mm | |
| Net weight | 239 kg | |
| Gross weight | 265 kg | |
Features
- Fanless, waterless Halo Heat technology
- Overhead LED lighting
- Adjustable thermostats 1-10 per heat zone for top and bottom heat
- Ceramic top heaters
- Operator-side work shelf and cutting board
- Sliding back doors with mirrored glass
- Tempered glass front with self-supported lifting mechanism
- Removable back doors and side glass panels
- One set of 4" (102mm) legs with rubber feet
- 7 pan zones to hold standard pan sizes (GN)
- 3 heat zones
- 3 heat-on indicator lights
- 6 long pan dividers (1002590)
- 7 short pan dividers (1002621)
- 21 short pan dividers (11318)Â
